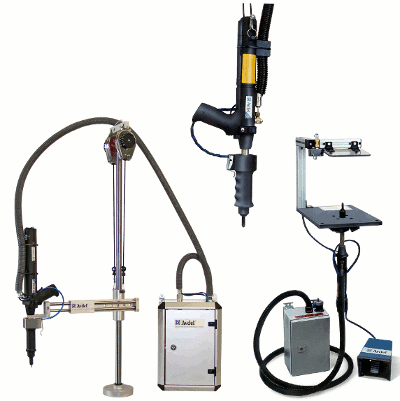

AVDEL艾維德快速鉚釘槍7539不同應用平臺中的使用
AVDEL快速鉚釘槍7539系列可以鉚接所有AVDEL快速鉚釘且設計很有特色.快速裝配或在小批量生產中讓其更具有成本效益,操作簡單,高機動性和易集成到生產過程中是其主要特點,所以沒有必要花時間對操作員培訓.液壓鉚接能夠提供流暢且無沖擊震動的鉚接作業,是在敏感部件進行鉚接作業的理想選擇。所有AVDEL快速鉚釘槍工具需要壓縮氣源供應,各自的槍嘴組件要單獨定購。
AVDEL快速鉚釘槍07539-03000型-豎直型工作臺這種工具適用于需要槍嘴朝下的鉚接作業環境.優點：由于工作臺的線性控制性和耐疲勞操作性俱佳，所以很容易調整工件,主要用于坐在工作區進行作業。
|
|
||||||||
|
|
|||||||||
AVDEL快速鉚釘槍07539-03001 -槍頭朝上式工作平臺The 07539-03001 is integrated into existing assembly workstations. The tool is especially suitable for components with “Bottom-Up” riveting requirements. The components are positioned on the previously fed rivet. Jig points required for the components can be designed more easily. |
|
||||||||
|
|
|||||||||
AVDEL快速鉚釘槍 07539-03005 -懸掛式For different riveting directions on the same component the tool is mounted via a balancer (balancer part-no. 78230-00005 has to be ordered separately). You can carry out up to 60 riveting processes per minute. An extension with a tool stand is optional. The tool weighs about 1.5 kg. |
|
||||||||
